Lift Table for Animals with a Capacity of 650 Pounds

Inventory #91195

The Stainless Steel Lift Table has a lift capacity of 650 pounds with removal forks and is operated by a hydraulic cylinder. Optional equipment is available.

Specifications

The LGL Stainless Steel Lift Table is constructed entirely of 304 stainless steel and other non-corrosive materials. The main support frame is constructed of 1/4" formed channels and plates and is mounted on two fixed position 3" wide pallet truck wheels at the front and two swivel plate casters at the rear for easy mounting.

Features of Lift Frame

  • Lift Frame constructed of 1/4" formed channels, 1/4" plates, and 2" square tubes.
  • Lift Frame travels on a minimum of twelve 1 1/2" diameter stainless steel rollers with 1/2" diameter axles.
  • Removal Lift Forks are 2" square stainless steel tubes welded to 1/4" plate brackets.
  • Lift Fork assembly attaches to the lift frame with six 1/2" diameter stainless steel bolts and lock nuts.

Features of the Lift

  • Lift is operated by a single hydraulic cylinder that is powered by a rechargeable 12V battery pack.
  • 120V trickle charger is included to keep the battery at full power between uses
  • Hydraulic cylinder compartment is enclosed with solid state stainless steel sheet covers on both front and back
  • Back cover includes a hinged access panel at the bottom for servicing the battery.

Optional Equipment

  • Electronic Scale
  • Single tube lift beam (replaces dual tube forks)
  • Solid stainless steel work table (mounts on the dual tube forks)

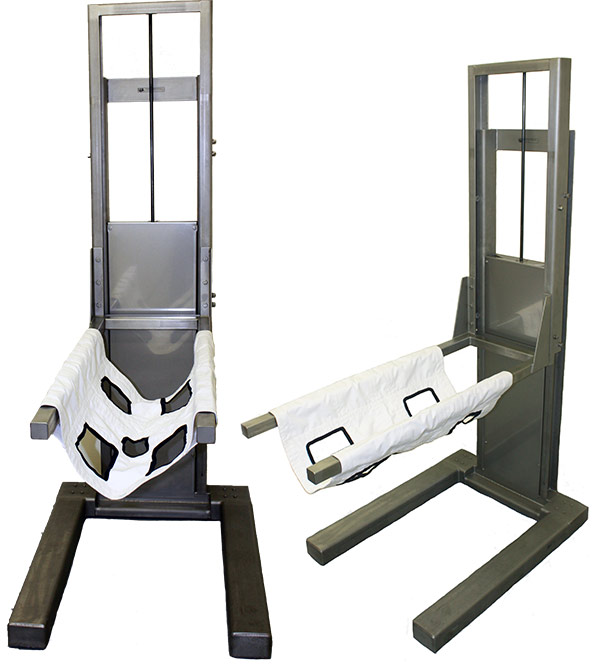

  • Animal sling (works with the dual tube forks)



lift table

Overall dimensions (basic lift table) at the lowered position:

  • 35 1/2"W x 59"D x 78 1/2"H
  • Fully raised position - overall unit height is 96 1/2"
  • The lift tubes or table work surface (above the floor) at the lowest position is 4 1/8"H
  • Fully raised position (above the floor) up to 44"H
